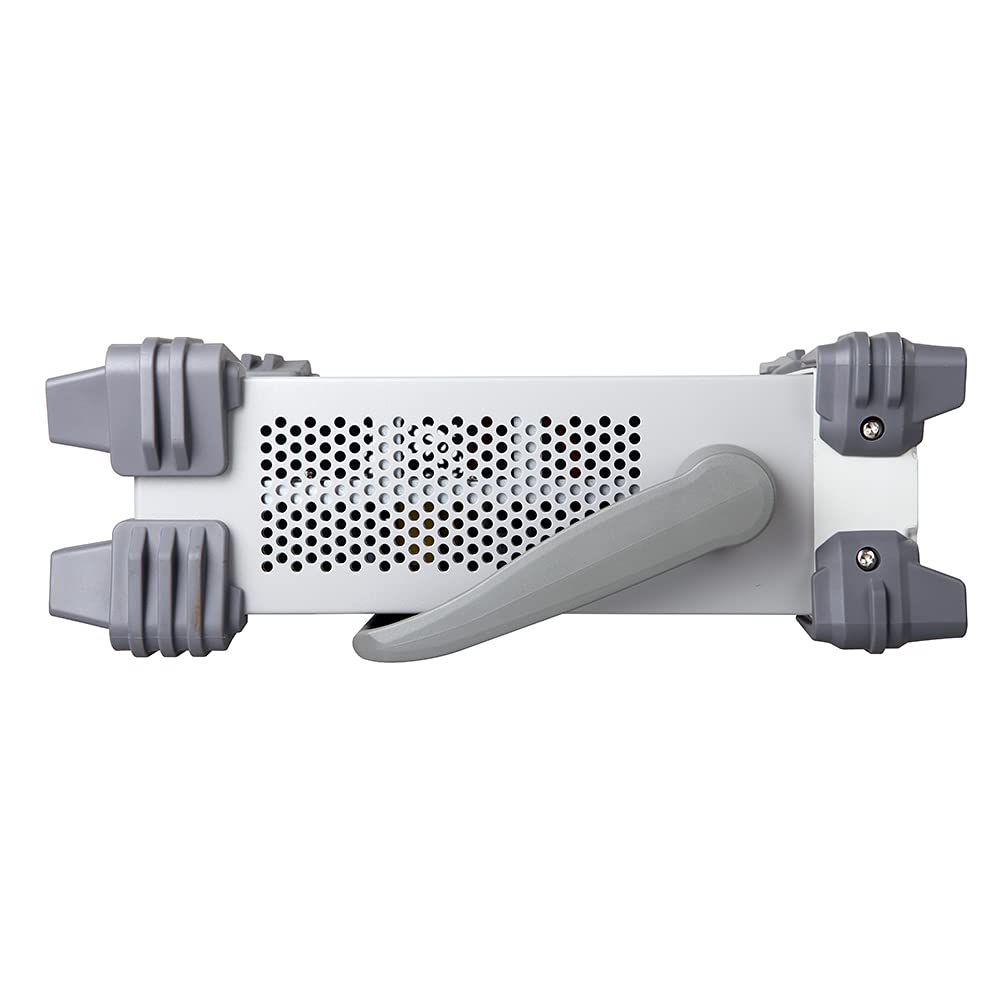

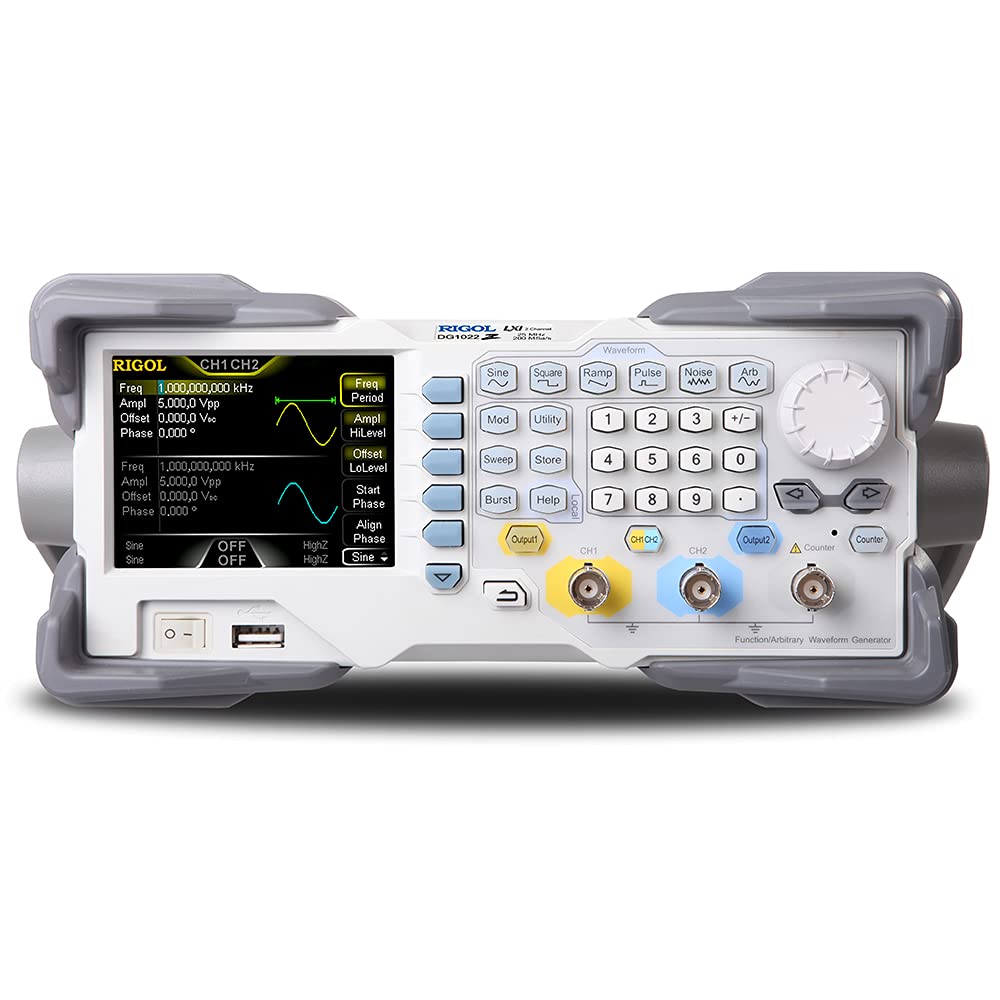

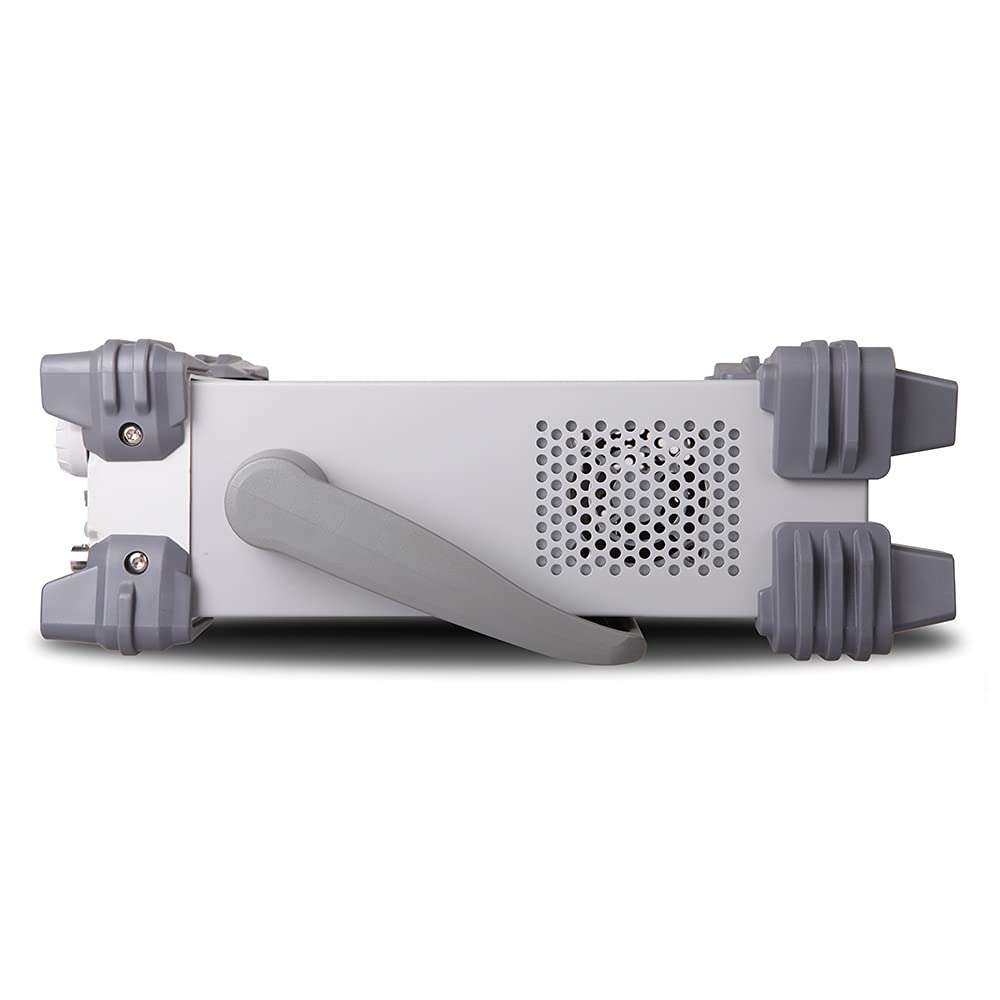

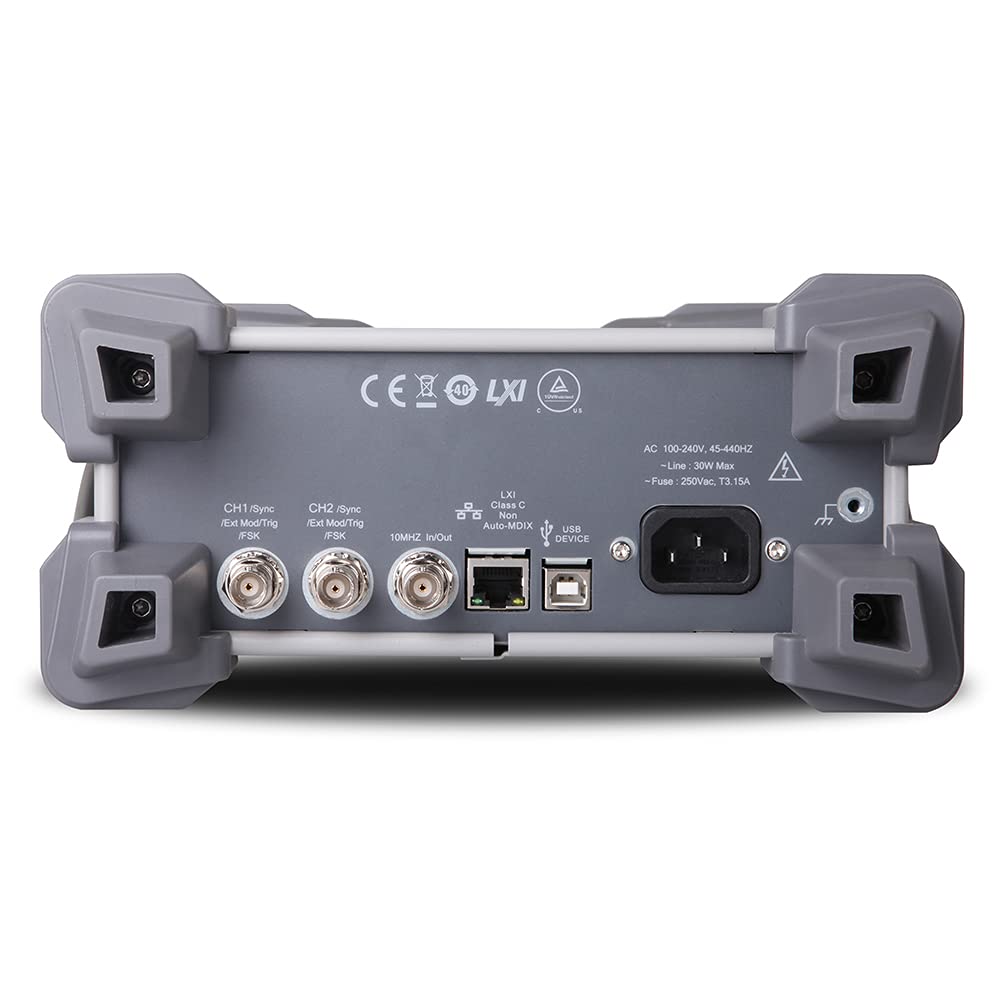

RIGOL DG1022Z Function/Arbitrary Waveform Generator, 25MHz 2 Channels P83634
Sale price
$78.69
Regular price $106.23
Skip to product information
SiFi (Signal Fidelity) for 100% waveform replication;2Mpts or 8Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform lengthStandard 2 full functional independent channels;±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitterBuilt-in 8 orders harmonics generatorBuilt-in 7 digits/s counter up to 200MHz;160 built-in pre-edited waveformsIntuitive arbitrary waveform editing software;Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM
RIGOL DG1022Z Function/Arbitrary Waveform Generator, 25MHz 2 Channels P83634
Sale price
$78.69
Regular price $106.23
| DG1022Z | DG1032Z | DG1062Z | |
|---|---|---|---|
| Channel | 2 | 2 | 2 |
| Max Frequency | 25 MHz | 30 MHz | 60 MHz |
| Sample Rate | 200 MSa/s | 200 MSa/s | 200 MSa/s |
| Basic Waveform | Sine, Square, Ramp, Pulse, Noise | Sine, Square, Ramp, Pulse, Noise | Sine, Square, Ramp, Pulse, Noise |
| Built-in Arbitrary Waveform | 160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc. | 160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc. | 160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc. |
| Harmonic Distortion | Typical (0 dBm) DC-10 MHz (included): <-65 dBc 10 MHz to 30 MHz (included): <-55 dBc 30 MHz to 60 MHz (included): <-50 dBc | Typical (0 dBm) DC-10 MHz (included): <-65 dBc 10 MHz to 30 MHz (included): <-55 dBc 30 MHz to 60 MHz (included): <-50 dBc | Typical (0 dBm) DC-10 MHz (included): <-65 dBc 10 MHz to 30 MHz (included): <-55 dBc 30 MHz to 60 MHz (included): <-50 dBc |
| Total Harmonic Distortion | <0.075% (10 Hz to 20 kHz, 0 dBm) | <0.075% (10 Hz to 20 kHz, 0 dBm) | <0.075% (10 Hz to 20 kHz, 0 dBm) |
| Spurious (non-harmonic) | Typical (0 dBm) ≤10 MHz: <-70 dBc >10 MHz: <-70 dBc + 6 dB/octave | Typical (0 dBm) ≤10 MHz: <-70 dBc >10 MHz: <-70 dBc + 6 dB/octave | Typical (0 dBm) ≤10 MHz: <-70 dBc >10 MHz: <-70 dBc + 6 dB/octave |
| Phase Noise | Typical (0 dBm, 10 kHz offset) 10 MHz: <-125 dBc/Hz | Typical (0 dBm, 10 kHz offset) 10 MHz: <-125 dBc/Hz | Typical (0 dBm, 10 kHz offset) 10 MHz: <-125 dBc/Hz |
